Special Types and Punches

Customised punches - hardened steel blocks for precise and defined marking. Durable, designed for Automator marking systems or for integration with other systems or in-line.

Custom metal punches can be produced in different types depending on:

• the size and shape of the punch itself;
• the direction of marking (straight view or reverse view);
• the type of engraving (30°, 60°, 90° or flat for heat marking).

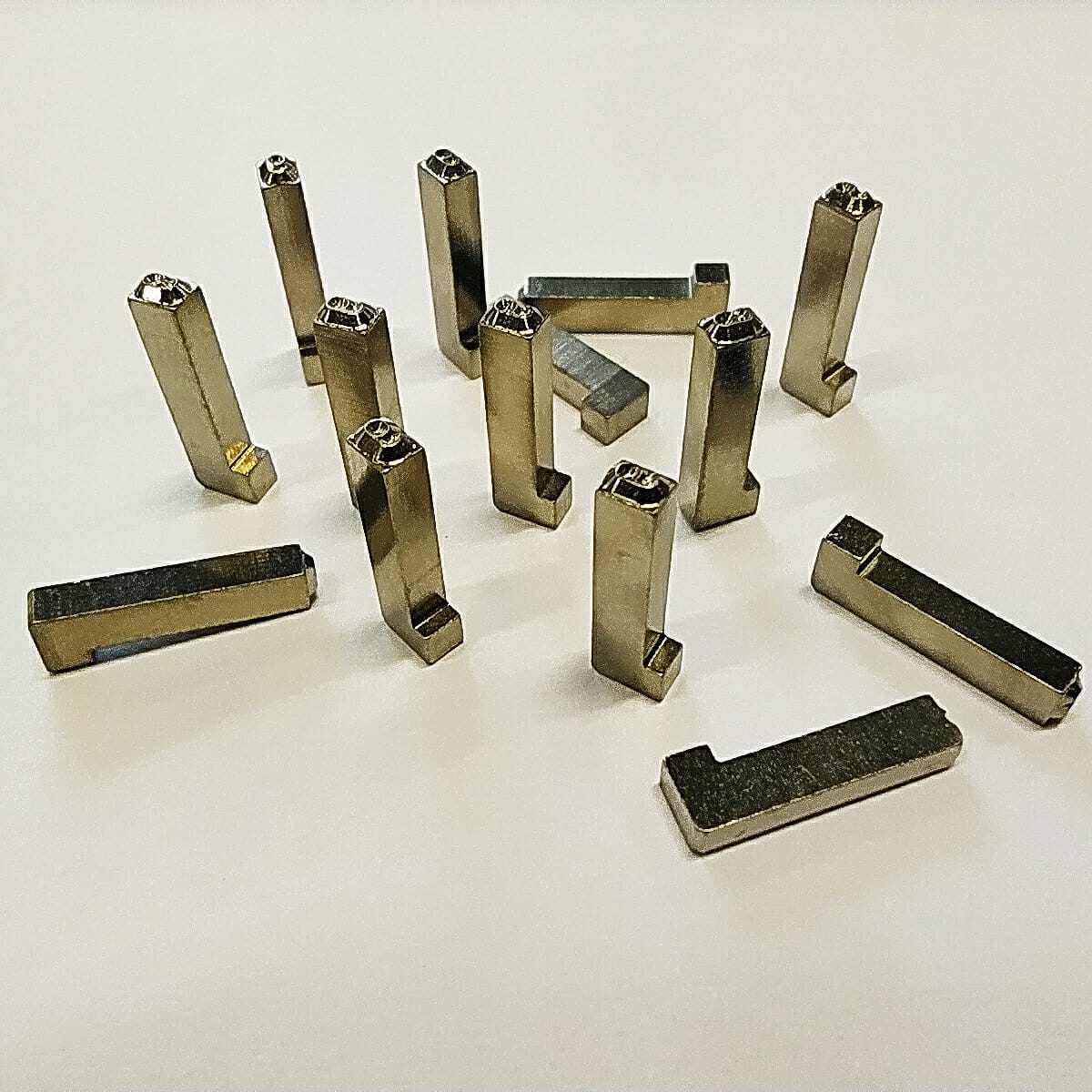

STANDARD TYPES WITH MILLED SIDES OF VARIOUS SIZES

“L” SHAPED TYPES

“T” SHAPED TYPES

REAR TINE TYPES

FRONT TINE TYPES

KIDNEY SHAPED TYPES

Customised punches for marking

Industrial marking technologies such as strike, hot stamping and rolling are almost exclusively based on the use of special characters andcustomised punches.

Available in different fonts and sizes, Automator Marking Systems'alphanumeric punches are designed to provide maximum precision and durability, thanks to more than 80 years of experience in creating these types of tools.

Marking punches manufactured by Automator Marking Systems are hardened steel blocks that are used for precise and defined marking.

They are durable products designed specifically for Automator marking systems, to be integrated with other systems or to be used in-line.

Thespecial characters are designed especially for use on blister machines.

Custom metal punches can be produced in different types depending on

• the size and shape of the punch itself;
• of the direction of marking (straight view or reverse view);
• of the type of engraving (30°, 60°, 90° or flat, for hot engraving).

Letters from the Latin, Polish, German, Czech and Cyrillic alphabets, numbers, special characters and logos can be made on eachpunch, with the font varying according to the customer's specific requirements.

It is also possible to printcustom punches with special logos and symbols from a customer drawing.

The special engraving punches for markers, hand guns and markers produced by Automator Marking Systems have been successfully used for many decades by many companies in their daily industrial production.

Thanks to the shape, size and, above all, the depth of our characters, deep, clear and permanent engravings can be created on metal and other materials with ourmould punches.
