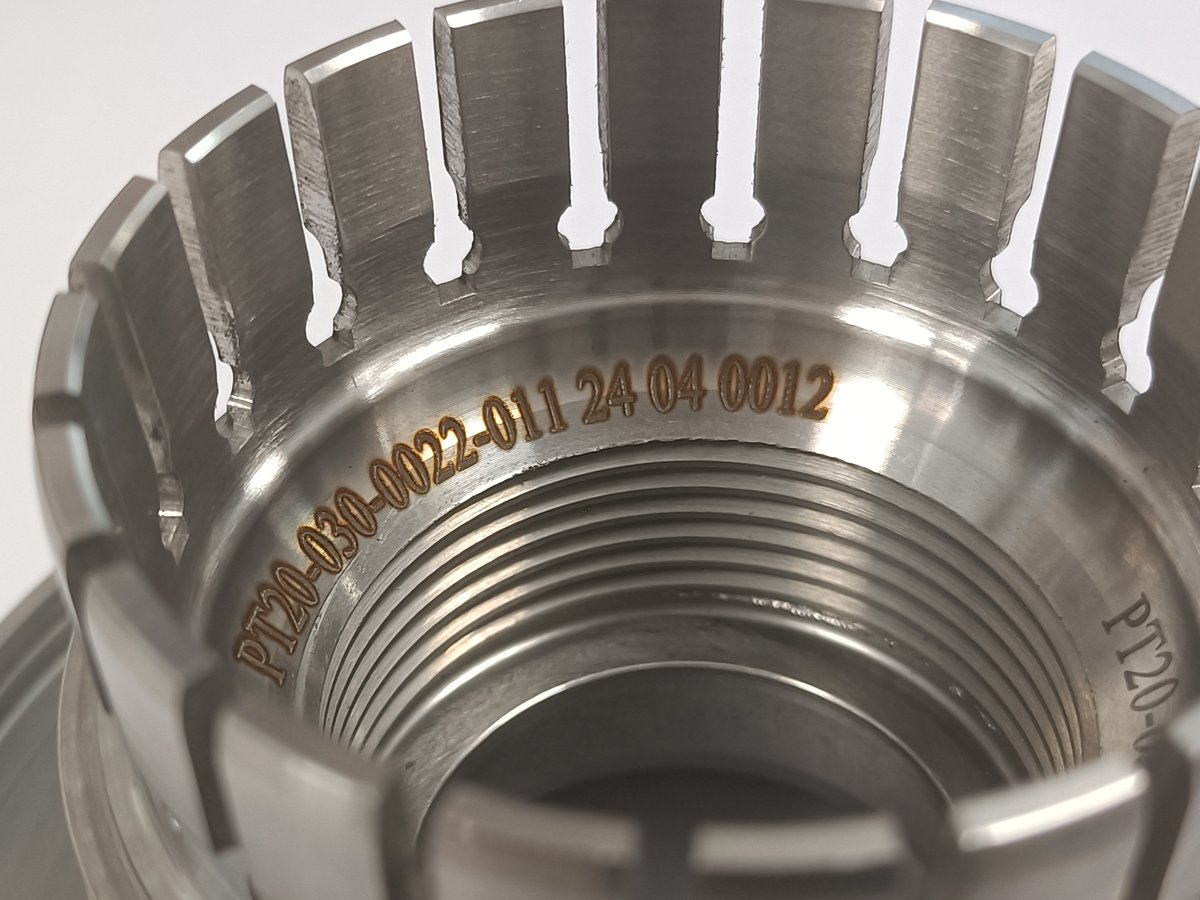

Benchtop system for laser marking in safety class 1. PRIMA2 enables marking, stamping and engraving on larger parts of all materials, or on production lines.
Standard sources available:
aWaveTM to mark almost any material, cost-effective laser marking solution
IVO4 for marking metals, anodized, painted and some types of non-transparent plastics
Intra to mark transparent plastics
CO2 for marking organic materials and plastics
Green for marking plastics
Easy-to-learn Automator software in multilingual with many open parameters to optimize the system according to the material to be marked:
Management of serial numbers, texts-even arching-with full TTF compatibility,
Basic geometric figures, shift and date codes in various formats,
Barcode management, 2D code marking and datamatrix
Import Dxf - wmf - plt - emf and Raster formats
Connections via Ethernet
Benchtop design with front opening and area inspection window with protective filter
Loading area of 500x550mm standard - other sizes possible upon request
Command box, with start/stop buttons
Manual Zeta axis with 200mm stroke
Do you want a benchtop laser structure that can be inserted into the production line? Request PRIMA2 with removable side panels or automatic side doors.
