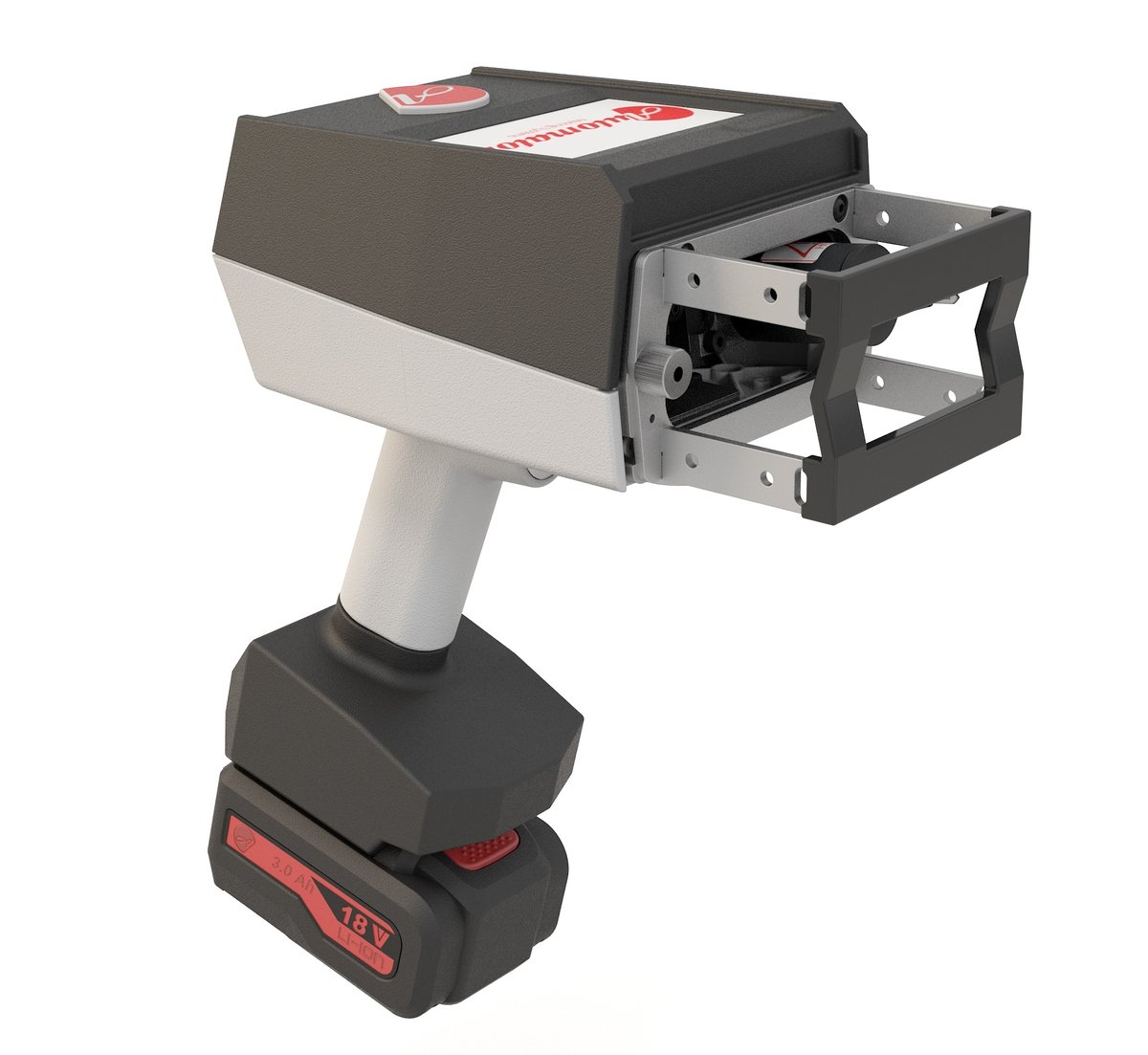

ADP2560BA portable dotpeen marker

Easily mark metals and hard plastics on all kinds of surfaces? Choose the ADP2560BA battery-powered microdot marker

KEY FEATURES

Fast, powerful and accurate battery-powered
Compact and lightweight unit for portable applications
Integrated controller
Marking area 25×60 mm
TTF, 2D codes, arcs and logos
Infinite storable marking programmes

ADP2560BA battery-powered microdot marker , a compact and lightweight unit capable of permanently marking various materials, such as metal, aluminium, iron, cast iron, plastic, etc. The characteristics of the text or image to be marked are easily set by software, such as character height and width, position in the marking area, working parameters, etc...
Two X and Y axes, each powered by a motor, determine the movement of the tip and the depth of the marking in the area to be marked. In other words, the marking machine can achieve any desired marking result. Unlike other Automator microdot models, the ADP2560BA is absolutely free of electrical or compressed air cables.

ADP2560-BA battery-powered marking machine - Extreme freedom of action!

The machine is equipped with a pair of 18V batteries, providing excellent working autonomy. Each battery is easily installed and removable and can be fully recharged in one and a half hours. The charger is included.

ADP2560BA Cordless Marker - Marking Speed

Speed depends on various factors such as character height, depth, dot density, desired quality, etc...

ADP2560BA Cordless Dot Marker - Marking Software

The ADP2560BA battery-powered microdot marker uses software with an intuitive and flexible interface, which allows absolute graphic freedom. This software brings together all the requirements of more than 20 years of experience in dot marking. Thanks to the graphical touch screen display, it is easy to navigate and just as easy to create the messages to be marked and set the relevant parameters, also displaying the time of the operation. It is the only one of the Automator dot markers to have the controller integrated into the machine. The preview allows you to depict exactly what will be marked and any change in the message can be instantly displayed. The software provides for the creation of date messages in various formats, fixed or variable texts, codes, serial numbers, Datamatrix and logos. It is also possible to create programmes on a PC, which can be easily transferred to the Controller with a USB stick or via the USB connection.

Technical data

Size	136x266x304 mm
Weight	3 Kg
Materials	Plastic Metals Rubber (*consult our technician for an assessment of material compatibility with our dotpeen marking technology) Wood Coatings Paper and cardboard Leather Other materials
