Dot peen marking

Dot peen marking (also known as dot peen part marking or micro-percussion marking) is a highly durable and versatile solution for permanent part marking on various materials. This technology is widely used in industries due to its ability to engrave serial numbers, logos, and alphanumeric codes with high precision and long-lasting readability.

Table of Contents:



dot peen marking



What is dot peen marking?

Dot peen part marking is a permanent engraving technology that utilizes a CNC-controlled stylus to create micro-indentations on a material’s surface. This marking method ensures long-term readability without affecting the integrity of the component. It is ideal for:

  • Serial numbers
  • Logos
  • Alphanumeric codes
  • DataMatrix codes

Looking for the best dot peen marking machines? Browse our dedicated category to find the perfect solution for your needs.

How Dot Peen Technology Works (Micro-Percussion Marking)

Dot peen marking operates using a pneumatically or electronically controlled stylus that strikes the material to create micro-indentations. The marking depth and density can be adjusted to fit various industrial applications. Thanks to precise CNC control, this technology ensures clear, legible, and permanent part marking on a wide range of materials.

There are different types of dot peen marking machines:

  • Integrated systems – for automated production lines
  • Benchtop models – for stationary workstations
  • Portable devices – for marking large or immovable parts



Comparison of Dot Peen Marking Machine Models



Area dimensions (mm)

Integrated

Benchtop

Portable

25 x 60

25 x 120

50 x 90

120 x 160

120 x 160 DEEP



300 x 400





Key Benefits of Dot Peen Part Marking

  • Durability: Permanent markings resistant to wear, chemicals, and mechanical stress.
  • Versatility: Works on various materials, including metals and plastics.
  • Precision: CNC-controlled for detailed and reproducible engravings.
  • Automation: Easily integrates into production processes.

Portable Dot Peen Marking Machines: Solutions and Benefits

Portable dot peen marking machines offer maximum flexibility, making them ideal for marking large or hard-to-move components.

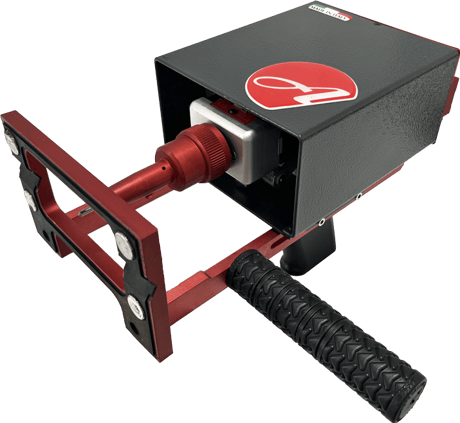

Portable Dot Peen Marking Machine ADP2560




Portable Dot Peen Marking Machine ADP2560

  • Marking Area: 25x60 mm
  • Tip Feed: Pneumatic
  • Materials: Plastics, Metals, Rubber (*please consult with our technician to evaluate material compatibility with our micropoint marking technology), Wood, Coatings and Treatments, Paper and Cardboard, Leather, Other Materials.

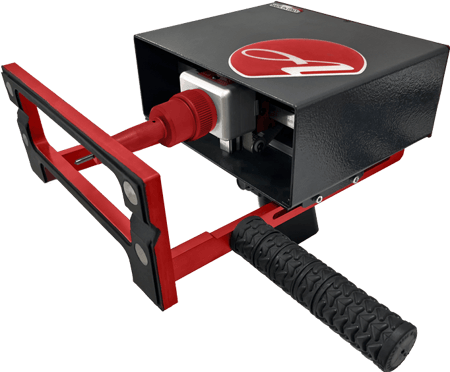

Portable Dot Peen Marking Machine ADP25120

Grabador a micropuntos ADP25120 portátil

  • Marking Area: 25x120 mm
  • Tip Feed: Pneumatic
  • Materials: Plastics, Metals, Rubber (please consult with our technician to evaluate material compatibility with our micropercussion marking technology), Wood, Coatings and Treatments, Paper and Cardboard, Leather, Other Materials.

Portable Dot Peen Marking Machine ADP25120

Portable Dot Peen Marking Machine ADP25120

  • Marking Area: 120x160 mm
  • Tip Feed: Pneumatic
  • Materials: Plastics, Metals, Rubber (please consult with our technician to evaluate material compatibility with our micropercussion marking technology), Wood, Coatings and Treatments, Paper and Cardboard, Leather, Other Materials.

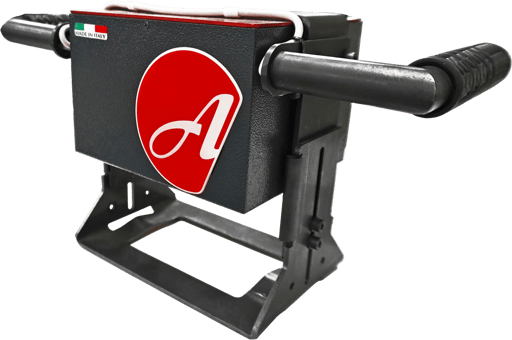

Portable Dot Peen Marking Machine ADP5090

Portable Dot Peen Marking Machine ADP5090

  • Marking Area: 25x60 mm
  • Tip Feed: Electric
  • Materials: Optimal for micropercussion marking on metals and hard plastics across all types of surfaces. It also marks plastics, metals, rubber (please consult with our technician to evaluate material compatibility with our micropercussion marking technology), wood, coatings and treatments, paper and cardboard, leather, other materials.

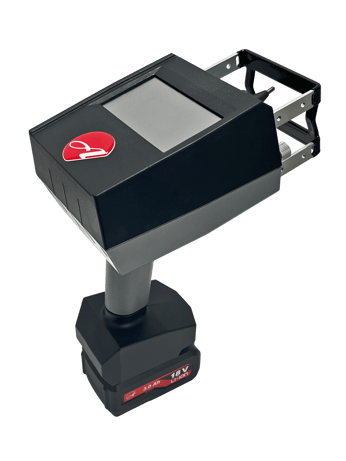

Battery-Powered Portable Micropoint Markers

Battery-Powered Portable Micropoint Markers

  • Marking Area: 25x60 mm
  • Tip Feed: Electric
  • Materials: Optimal for micropercussion marking on metals and hard plastics across all types of surfaces. It also marks plastics, metals, rubber (please consult with our technician to evaluate material compatibility with our micropercussion marking technology), wood, coatings and treatments, paper and cardboard, leather, other materials.

Markable Materials

Dot peen part marking can be used on a wide variety of materials, making it one of the most versatile industrial marking solutions available. Common materials include:

  • Steel: Ideal for industrial components requiring permanent and wear-resistant markings.
  • Aluminum: Lightweight and durable, widely used in the automotive and aerospace industries.
  • Brass: Suitable for high-precision and aesthetic applications.
  • Plastic: Common in electronics and lightweight component manufacturing.
  • Titanium: A high-quality material often used in medical and aerospace applications.

This broad compatibility makes dot peen marking a preferred choice for various industrial applications.



Industrial Applications of Dot Peen Part Marking

Dot peen marking machines are used across industries for permanent, highly durable part marking. Key industries include:

  • Automotive: Chassis numbers, mechanical components, and identification plates.
  • Aerospace: Structural parts, critical components, and serial identification.
  • Metalworking: Customization and traceability of manufactured parts.
  • Medical: Surgical instruments and medical devices with traceable identification codes.
  • Energy & Oil & Gas: Engraving pipes, valves, and industrial components exposed to extreme conditions.

Using dot peen marking in these industries enhances quality control, safety, and compliance with industrial regulations.



Deep Dot Peen Marking: Ensuring Long-Lasting Engraving

Deep marking is a key feature of dot peen technology, allowing engravings to remain visible even after surface treatments like painting or sandblasting. This ensures long-term readability, even in harsh environments or under mechanical stress.



Advantages of Deep Dot Peen Marking:

  • Resistant to weathering, corrosion, and wear
  • Essential for industries like automotive, where components undergo surface finishing
  • Customizable depth settings for highly visible, precise engravings



Discover Our Full Range of Dot Peen Marking Machines

We offer a complete range of dot peen marking machines tailored to industrial marking needs. Each model is designed for maximum efficiency and precision, ensuring outstanding results in every application.

FAQ – Frequently Asked Questions About Dot Peen Marking

1. What Is the Dot Peen Marking Process?

Dot peen marking is a permanent engraving process using a CNC-controlled stylus to create micro-indentations on a material’s surface. This method ensures long-lasting readability without damaging the component.



2. What Is the Difference Between Laser Marking and Dot Peen Marking?

  • Dot peen marking creates physical indentations, making it ideal for deep, durable markings.
  • Laser marking alters the surface without physical contact, offering high-speed, high-contrast results but less depth.



3. What Is the Difference Between Shot Peen and Dot Peen?

  • Dot peen marking is used for identification and traceability by engraving parts.
  • Shot peening is a surface treatment process that strengthens materials by blasting them with high-speed shot particles.



4. What Is the Marking Depth of Dot Peen?

Dot peen marking depth typically ranges from 0.1 mm to 0.5 mm, while deep dot peen marking can exceed 1 mm, ensuring high visibility even after surface treatments.
